Classification Of Main Bearings

The marking is stamped in the engine block and crankshaft. The classification marking is in the engine block above the oil cooler and crankshaft. The classification shall be read from the digit 1 to 7.

The first letter after the digit 1 is the classification of main bearing 1. The bearing positions are numbered starting at the engine's leading edge.

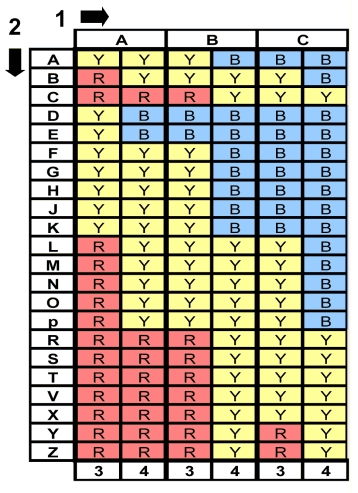

GLL165804Courtesy of VOLVO CARS CORPORATION
  1. Classification cylinder block
  2. Classification crankshaft
  3. Cylinder block
  4. Intermediate section
