Leakage Detection, Valve [2017-2018, B4204T11]

NOTE: For information on Volvo color coded illustrations, refer to: IMAGES

SPECIAL TOOLS

Courtesy of VOLVO CARS CORPORATION	999 7730 Plug Tool number: 999 7730 Tool description: Plug Tool boards: 21
Courtesy of VOLVO CARS CORPORATION	951 2957 Coolant Reservoir Tool number: 951 2957 Tool description: Coolant Reservoir Tool boards: 20

LEAK DETECTION

GLL1045880

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the surface is clean and free of foreign material.

GLL1049012

Courtesy of VOLVO CARS CORPORATION

Open the valve.
Open the valve.

GLL1047321

Courtesy of VOLVO CARS CORPORATION

Place the tool against a smooth surface. Mark the value of the indicator. This is the target value.

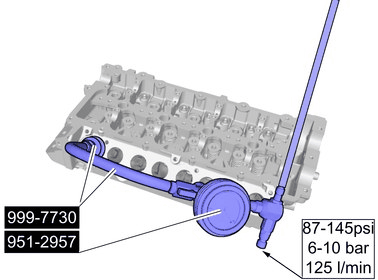

GLL1045823

Courtesy of VOLVO CARS CORPORATION

NOTE:

Ensure that the valves concerned are closed.

GLL1049012

Courtesy of VOLVO CARS CORPORATION

Open the valve.
Open the valve.

GLL1043348

Courtesy of VOLVO CARS CORPORATION

Check the value.

The value should be the same as the target value.

NOTE:

Repeat the procedure for all cylinders.
