Crankshaft Axial Play [2016, B5254T12]: Removal

Remove right side front wheel, refer to: WHEELS

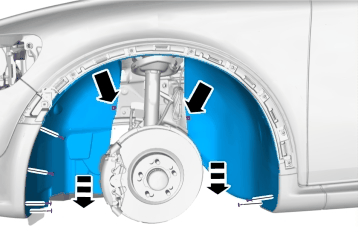

GLL158050Courtesy of VOLVO CARS CORPORATION

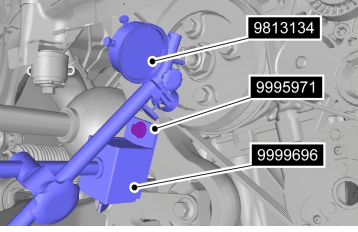

GLL158693Courtesy of VOLVO CARS CORPORATION

Special Tool: 981 3134  , Special Tool: 999 9696   and Special Tool: 999 5971

Torque:  M10, 50Nm

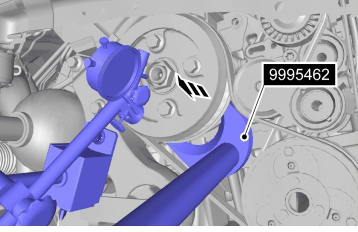

GLL158694Courtesy of VOLVO CARS CORPORATION
CAUTION:

Make sure to zero the dial indicator gauge before each measurement.

Special Tool: 999 5462

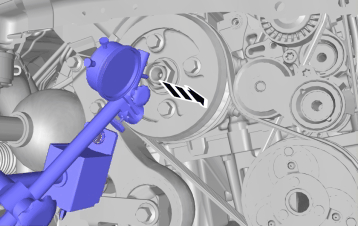

GLL158695Courtesy of VOLVO CARS CORPORATION

See information about specifications, refer to: ENGINE

To install, reverse the removal procedure.
