Valve, Piston Cooling [2017-2018, B4204T11]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove engine pad right, refer to: ENGINE PAD RIGHT

Remove vibration damper, refer to: VIBRATION DAMPER

Courtesy of VOLVO CARS CORPORATION

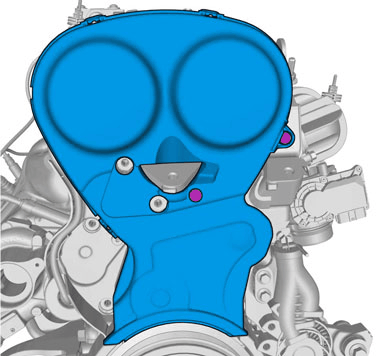

Remove the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

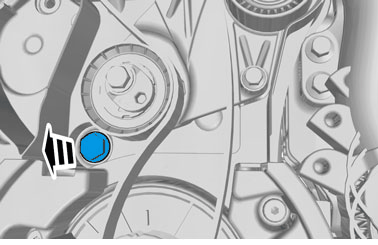

NOTE:

Use suitable paper to absorb any escaping fluid.

Torque: Piston cooling nozzle, 32Nm

Courtesy of VOLVO CARS CORPORATION

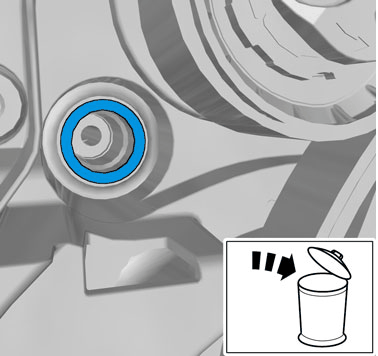

NOTE:

Make sure that a new component is installed.
