Valve, Piston Cooling [2016, B5254T12]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove timing belt, refer to: TIMING BELT

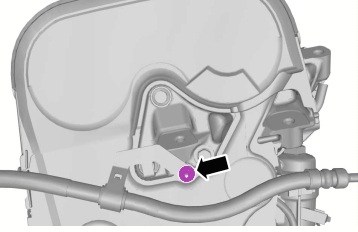

GLL155170Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

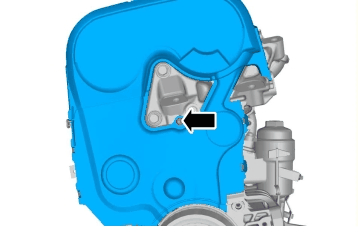

GLL155171Courtesy of VOLVO CARS CORPORATION

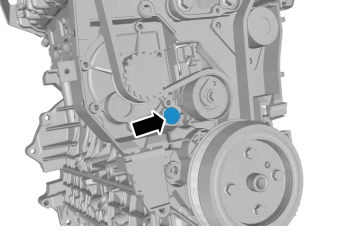

GLL155679Courtesy of VOLVO CARS CORPORATION

Torque:  Piston cooling nozzle, 32Nm
