Oil Trap [2017-2018, B4204T11]: Removal

GLL1039311Courtesy of VOLVO CARS CORPORATION

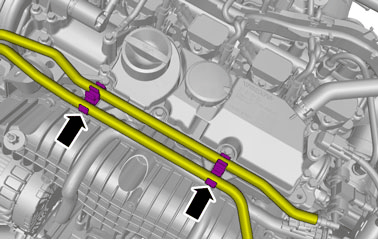

GLL1001211Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

GLL1020825Courtesy of VOLVO CARS CORPORATION
GLL1038155Courtesy of VOLVO CARS CORPORATION
CAUTION:

Make sure that the area around the component is clean and free of foreign material.

Remove the screws.
