Oil Trap [2016, B5254T12, TF-80SC AWD]: Installation

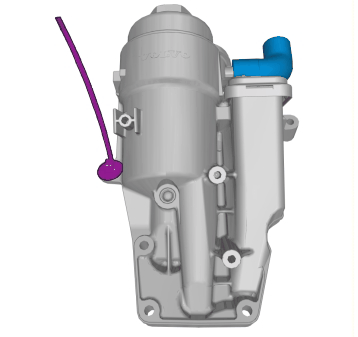

GLL165459

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the gaskets are correctly located.

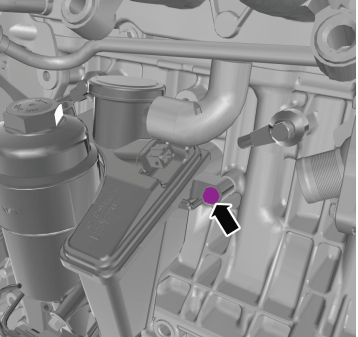

GLL165356

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the mating faces are clean and free of foreign material.

NOTE:

Only tighten the bolt finger tight at this stage.

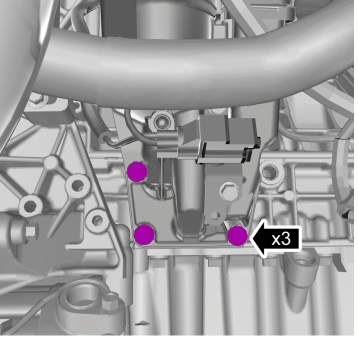

GLL165355

Courtesy of VOLVO CARS CORPORATION

Torque: M7, 17Nm

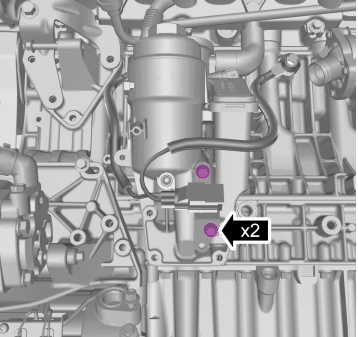

GLL165354

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

GLL155090

Courtesy of VOLVO CARS CORPORATION

GLL165356

Courtesy of VOLVO CARS CORPORATION

Torque: M7, 17Nm

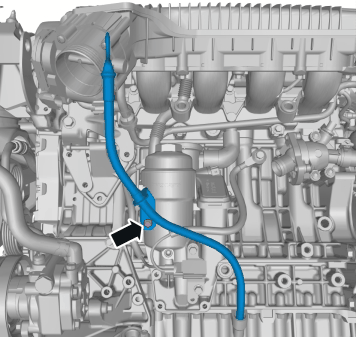

GLL165357

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

GLL167006

Courtesy of VOLVO CARS CORPORATION

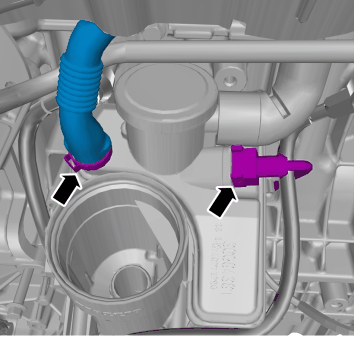

GLL165353

Courtesy of VOLVO CARS CORPORATION

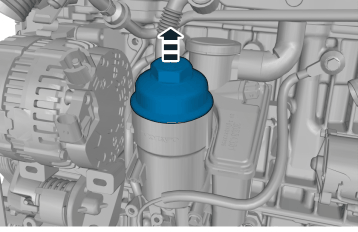

GLL167007

Courtesy of VOLVO CARS CORPORATION

Torque: Cover oil filter, 25Nm

Install the air filter housing, refer to: AIR CLEANER HOUSING
