Oil Pump [2017-2018, B4204T11]: Removal

Remove oil pan, refer to: OIL PAN

Courtesy of VOLVO CARS CORPORATION

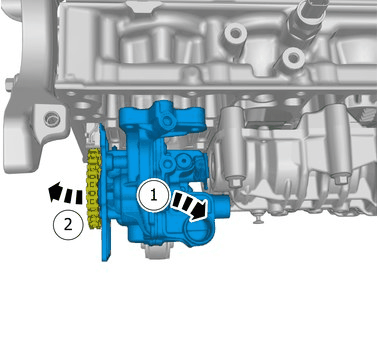

NOTE:

Only use moderate force.

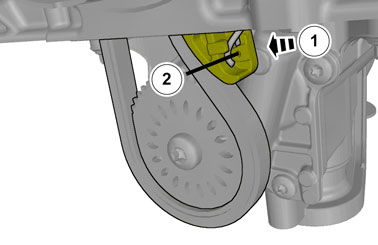

2. Use:  Pin 3 mm

Courtesy of VOLVO CARS CORPORATION

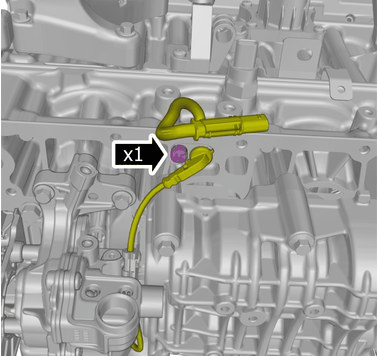

Torque:  M6, 10Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

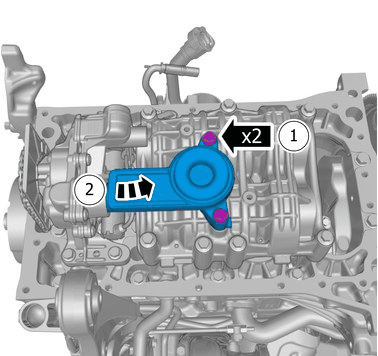

Torque:  M7, 17Nm

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

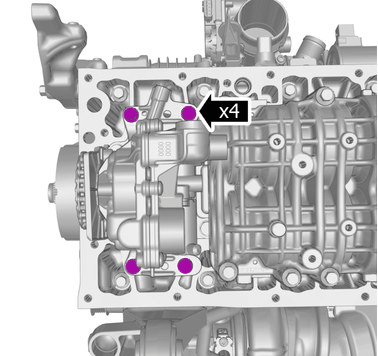

Torque:  M7, 17Nm

Courtesy of VOLVO CARS CORPORATION
