Oil Pump [2016, B5254T12]: Removal

Remove timing belt, refer to: TIMING BELT

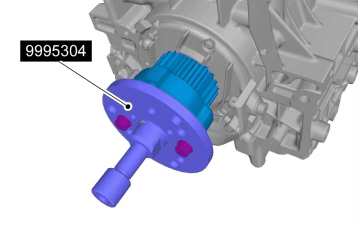

GLL154640Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 5304

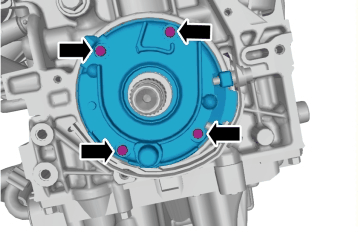

GLL153560Courtesy of VOLVO CARS CORPORATION
WARNING:

Be prepared to collect escaping fluid.
