Oil Pump [2016, B5254T12]: Installation

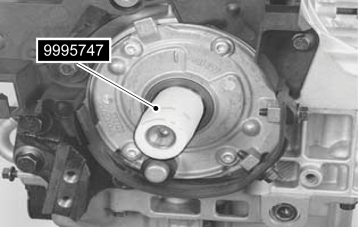

GLL154573Courtesy of VOLVO CARS CORPORATION
CAUTION:

Take extra care not to damage the seal.

Special Tool: 999 5747

Torque:  M6, 10Nm

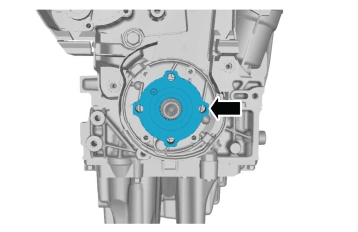

GLL153580Courtesy of VOLVO CARS CORPORATION
NOTE:

The component can only be installed in 1 position.

Install timing belt, refer to: TIMING BELT
