Oil Cooler, Engine [2017-2018, B4204T11]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Drain engine oil, refer to: ENGINE OIL
Perform cooling system draining, charging and bleeding, refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING
WARNING:
Be prepared to collect escaping fluid.

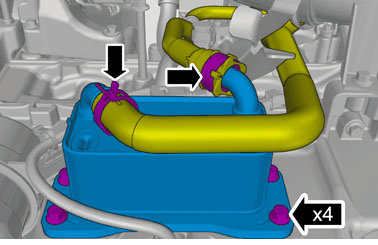

Loosen the hose clamps.
Torque: M7, 17Nm
CAUTION:

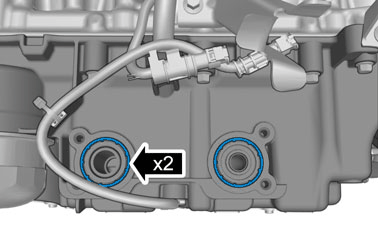

Make sure that the gaskets are correctly located.
NOTE:
Make sure that the mating faces are clean and free of foreign material.
