Oil Cooler, Engine [2016, B5254T12]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Perform draining, refer to: OIL FILTER

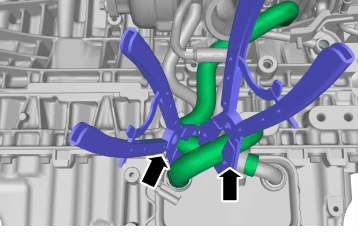

GLL154606Courtesy of VOLVO CARS CORPORATION

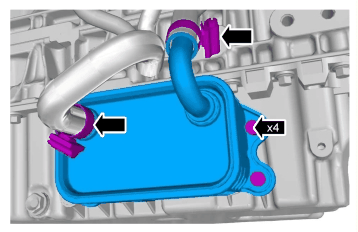

GLL1037508Courtesy of VOLVO CARS CORPORATION
WARNING:

Be prepared to collect escaping fluid.

Torque:  Oil cooler, 17Nm
