Engine Oil [2017-2018, B4204T11]: Removal

Courtesy of VOLVO CARS CORPORATION

See information about lifting points body, refer to: JACKING POINTS BODY

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Courtesy of VOLVO CARS CORPORATION

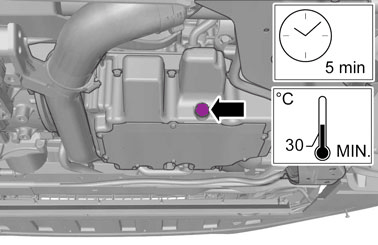

Torque:  Drain plug oil pan, 38Nm

Courtesy of VOLVO CARS CORPORATION

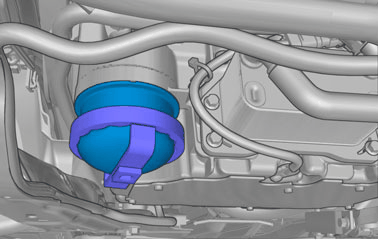

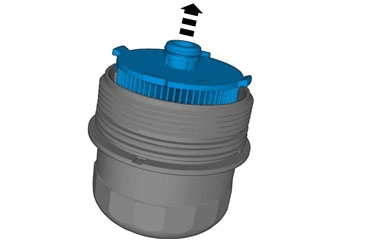

Special Tool: 999 7499

Torque:  Oil filter, 25Nm

Courtesy of VOLVO CARS CORPORATION

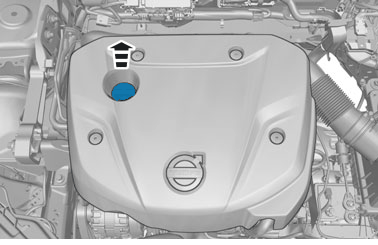

Follow instructions for lubricant, engine, refer to: LUBRICANT, MOTOR
