Engine Oil [2016, B5254T12]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
 Courtesy of VOLVO CARS CORPORATION
|
NOTE:
Use suitable paper to absorb any escaping fluid.

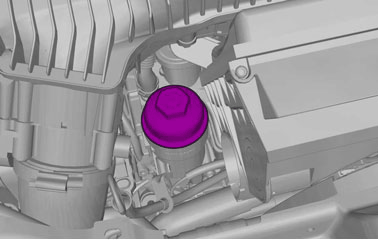

Torque:
Oil filter, 25Nm
 Courtesy of VOLVO CARS CORPORATION
|
 Courtesy of VOLVO CARS CORPORATION
|
WARNING:
Be prepared to collect escaping fluid.

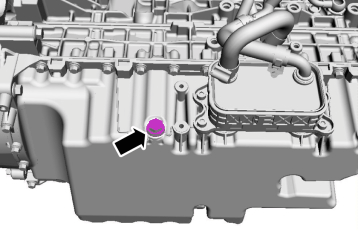

Torque:
Drain plug oil pan, 38Nm
