Oil Pressure Test [2017-2018, B4204T11]: Installation

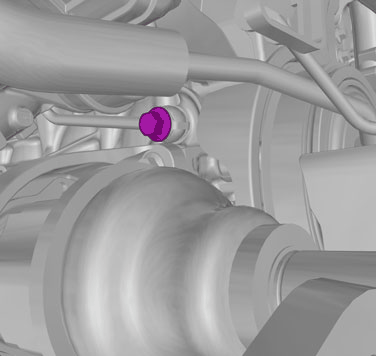

GLL1028467

Courtesy of VOLVO CARS CORPORATION

Install the screw.

Torque: Oil pressure pipe to engine (banjo screw) M14x1.5, 48Nm

Install wheel, refer to: WHEELS
