Checking For Coolant In The Oil [2016-2018]

NOTE: For information on Volvo color coded illustrations, refer to: IMAGES

CHECK

WARNING:

Wear protective gloves.

CAUTION:

Make sure that the equipment is clean and free from foreign materials.

Courtesy of VOLVO CARS CORPORATION

Use: Test equipment, coolant in oil, 30783361 EU, 30783360 US

Use: Plastic pipette 3 ml

Courtesy of VOLVO CARS CORPORATION

Use: Test tube

Courtesy of VOLVO CARS CORPORATION

Use: Plastic pipette 1 ml

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

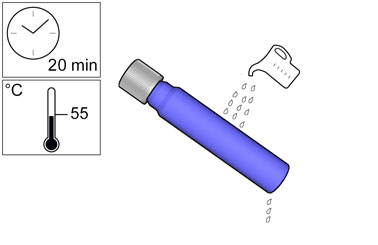

Rinse with clean water.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Rinse with clean water.

Courtesy of VOLVO CARS CORPORATION

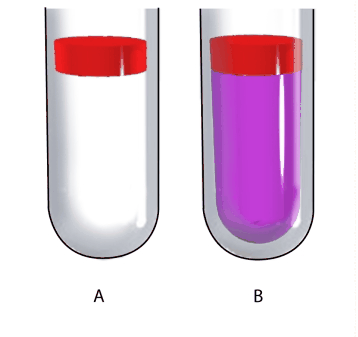

Test tube A : no glycol in the oil.

Test tube B : violet color means glycol in the oil.
