Thermostat [2017-2018, B4204T11]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Drain cooling system, draining, filling, and bleeding, refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING

Remove intake manifold, refer to: INDUCTION PIPE

Courtesy of VOLVO CARS CORPORATION

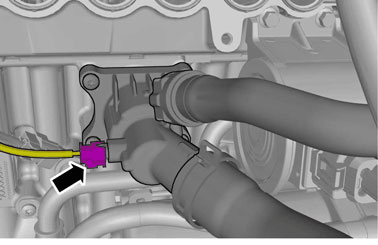

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use suitable paper to absorb any escaping fluid.

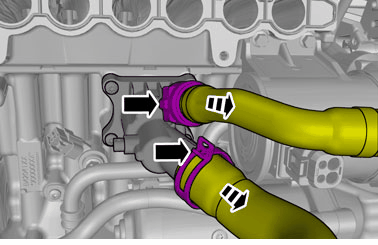

Loosen the hose clamp.

Release the lock.

Undo the hoses from the connections.

Courtesy of VOLVO CARS CORPORATION

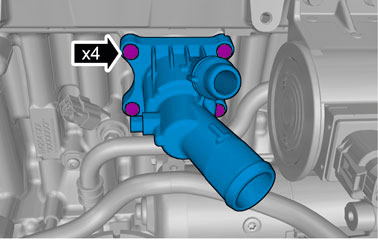

Remove the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

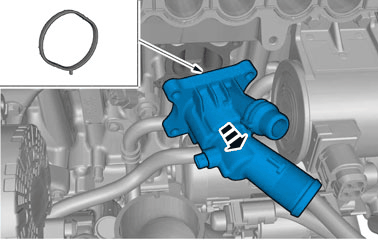

NOTE:

Make sure that the seal is correctly located.

Courtesy of VOLVO CARS CORPORATION
