Thermostat [2016, B5254T12]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Perform draining, refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING

Remove the air filter housing, refer to: AIR CLEANER HOUSING

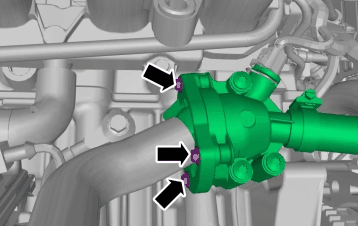

GLL155119Courtesy of VOLVO CARS CORPORATION
WARNING:

Be prepared to collect escaping fluid.

Torque:  M6, 10Nm

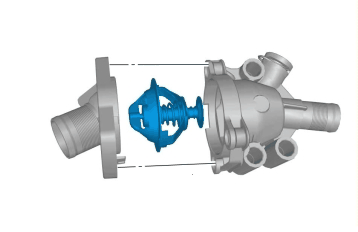

GLL155120Courtesy of VOLVO CARS CORPORATION
