Radiator [2018, B4204T11, TG-81SC AWD]: Removal

See information about lifting points body, refer to: JACKING POINTS BODY

Remove the engine cooling fan, refer to: ENGINE COOLING FAN

Perform cooling system draining, charging and bleeding, refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING

Remove casing bumper front, refer to: COVER BUMPER FRONT

Courtesy of VOLVO CARS CORPORATION

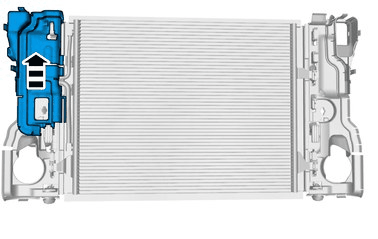

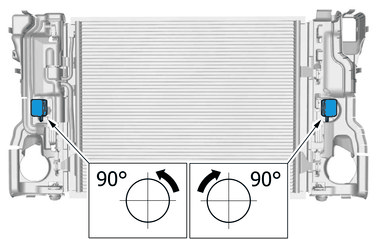

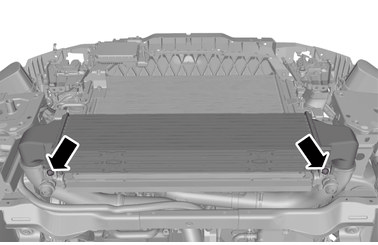

Remove the marked detail/details.

1. Torque:  M6, 10Nm
2. Torque:  M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

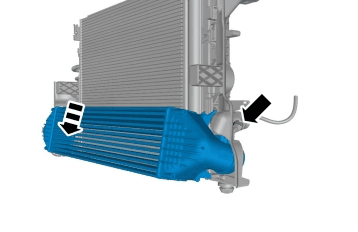

Undo the hoses from the connections.

Courtesy of VOLVO CARS CORPORATION

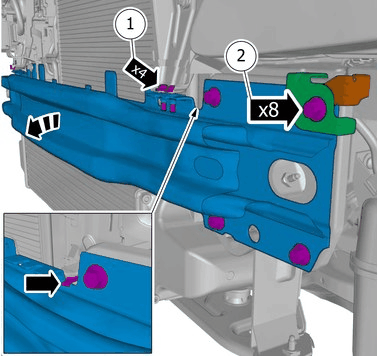

Loosen the screws.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

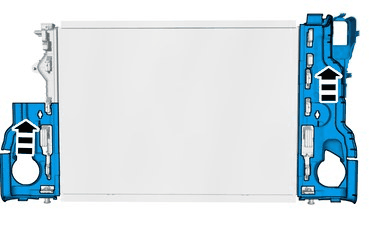

Remove the marked part.

Use:  Unit lift

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

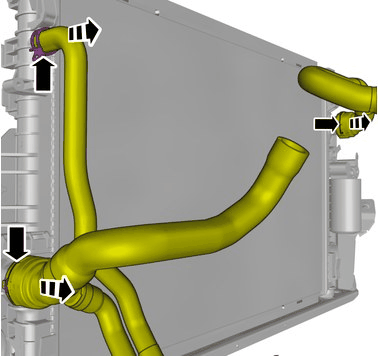

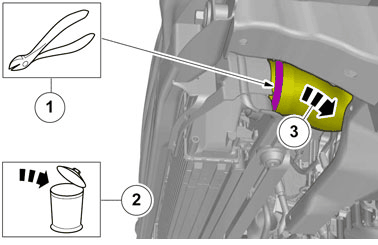

Loosen the hose clamp.

Courtesy of VOLVO CARS CORPORATION

Loosen the hose clamp.

Courtesy of VOLVO CARS CORPORATION

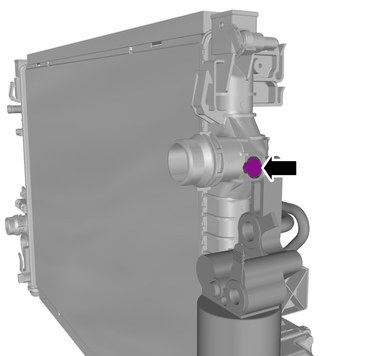

Loosen the screws.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

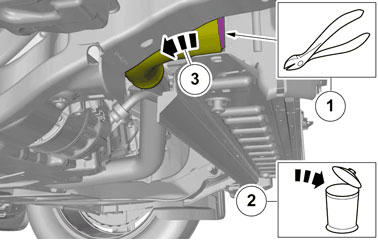

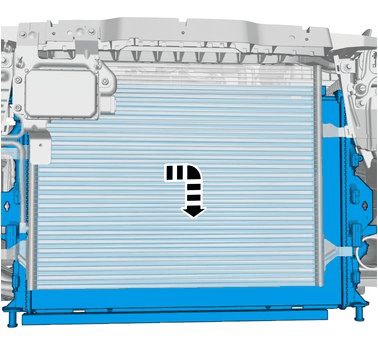

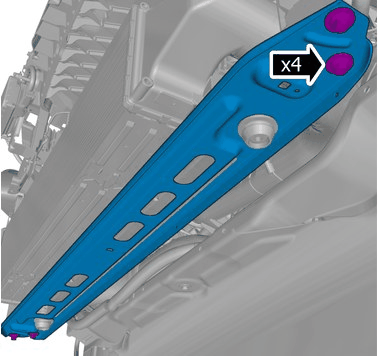

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

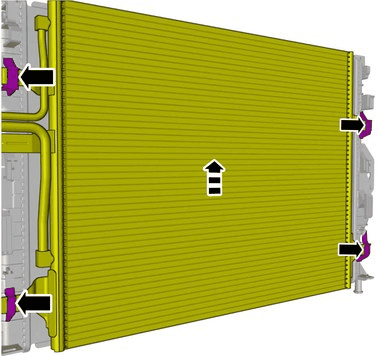

Release the catches.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
