Radiator [2017, B4204T11, TG-81SC AWD | 2016, B5254T12, TF-80SC AWD]: Removal

Remove the following items:

• Cover bumper front, refer to: COVER BUMPER FRONT
• engine cooling fan, refer to: ENGINE COOLING FAN

Perform cooling system draining, charging and bleeding, refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING

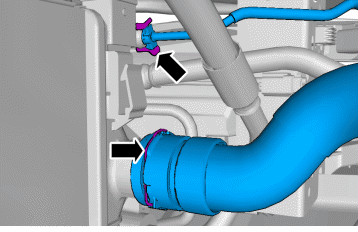

Courtesy of VOLVO CARS CORPORATION

Remove right headlight, refer to: HEADLAMPS

Courtesy of VOLVO CARS CORPORATION

Torque:  Radiator to condenser, 5Nm

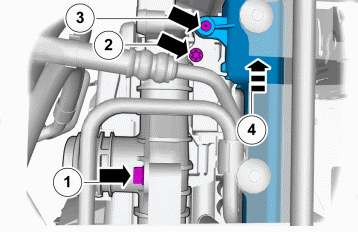

Courtesy of VOLVO CARS CORPORATION

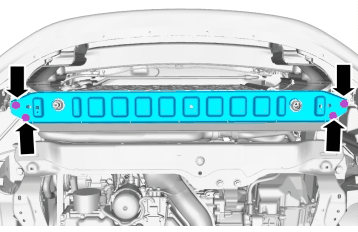

Courtesy of VOLVO CARS CORPORATION

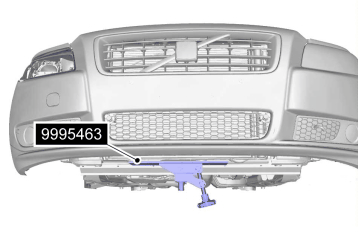

Special Tool: 999 5463

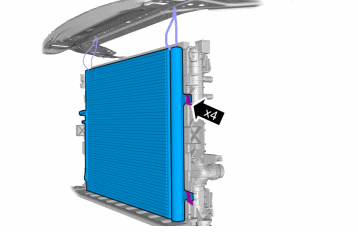

Courtesy of VOLVO CARS CORPORATION

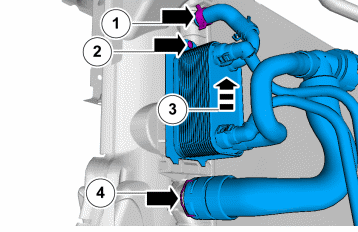

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION
