Engine Coolant Pump [2016, B5254T12]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Perform draining, refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING

Remove timing belt, refer to: TIMING BELT

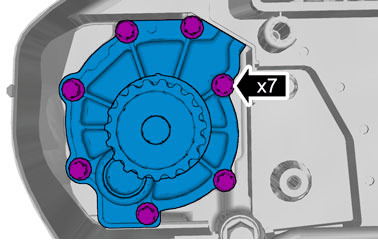

GLL154516

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

Torque: M7, 17Nm
