Charge Air Cooler [2017-2018, B4204T11 | 2016, B5254T12]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

See information about lifting points body, refer to: JACKING POINTS BODY

See information on casing bumper front, refer to: COVER BUMPER FRONT

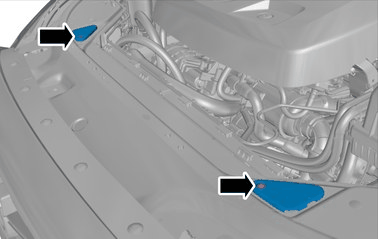

GLL1009606

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M6, 10Nm

GLL1000761

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of each component before removal.

Remove the screws.

Torque: M8, 24Nm

GLL1013960

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the component.

GLL1030773

Courtesy of VOLVO CARS CORPORATION

Loosen the hose clamp.

GLL1023289

Courtesy of VOLVO CARS CORPORATION

Loosen the hose clamp.

GLL1029206

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

GLL1000855

Courtesy of VOLVO CARS CORPORATION

Release the lock.
