Charge Air Cooler [2017-2018, B4204T11 | 2016, B5254T12]: Installation

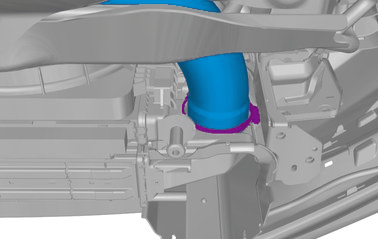

GLL1017977Courtesy of VOLVO CARS CORPORATION

Tighten the hose clamp.

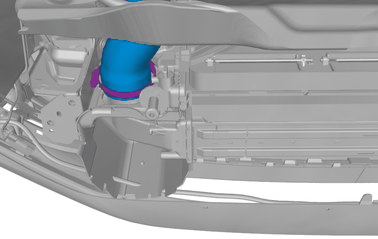

GLL1036705Courtesy of VOLVO CARS CORPORATION

Tighten the hose clamp.

To install, reverse the removal procedure.
