Transmission Control Unit Wiring Harness [2017-2018, B4204T11, TG-81SC AWD]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the following items:
- cover, control system, refer to: COVER, CONTROL SYSTEM
- Transmission Control Module (TCM), refer to: TRANSMISSION CONTROL MODULE
Torque: M5, 5Nm

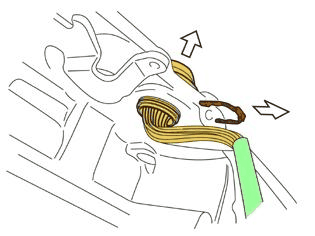

Remove the screw.

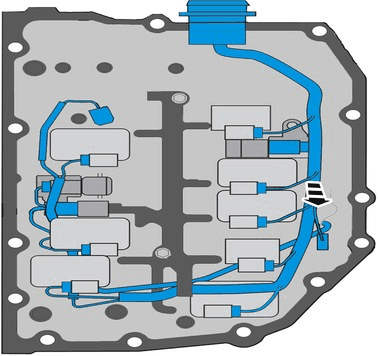

Remove the part carefully
NOTE:
Note the position of the electrical connectors.

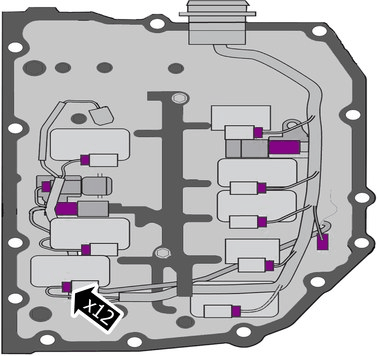

Disconnect the connectors.

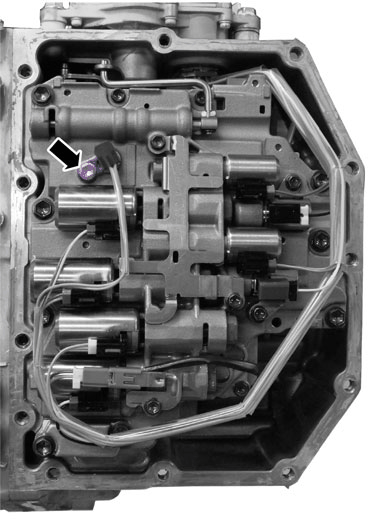

Loosen the clip.
Loosen the marked detail/details.
