Transmission Control Unit Wiring Harness [2016, B5254T12, TF-80SC AWD]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the following items:
- cover, control system, refer to: COVER, CONTROL SYSTEM
- Transmission Control Module (TCM), refer to: TRANSMISSION CONTROL MODULE
Torque: M5, 5Nm
NOTE:

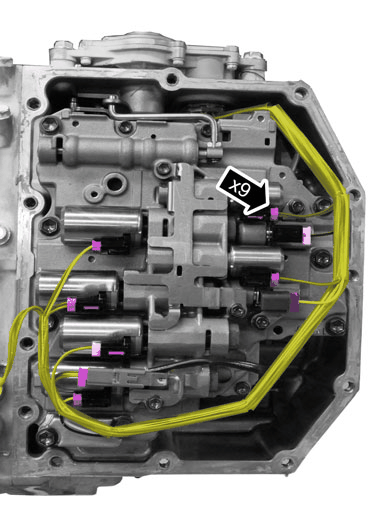

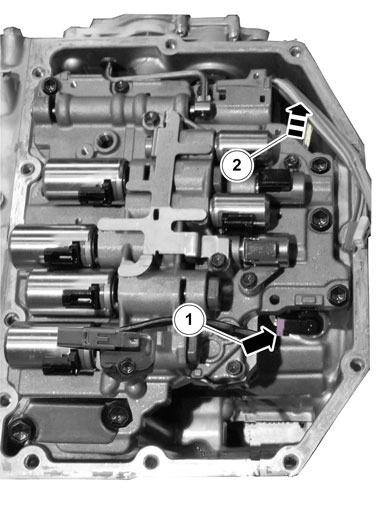

Note the position of the electrical connectors.
