Engine Compartment Central Electrical Unit Fuse [2017-2018]: Installation

Courtesy of VOLVO CARS CORPORATION

NOTE:

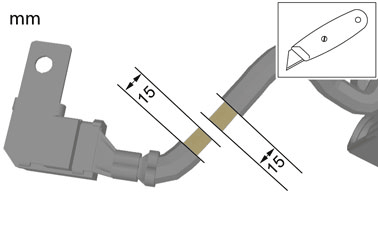

Adapt the wiring length of the spare part to the wiring of the vehicle.

Courtesy of VOLVO CARS CORPORATION

NOTE:

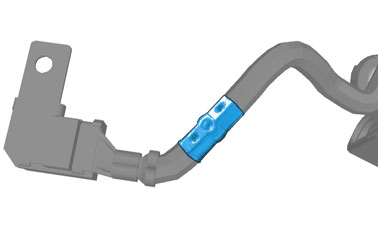

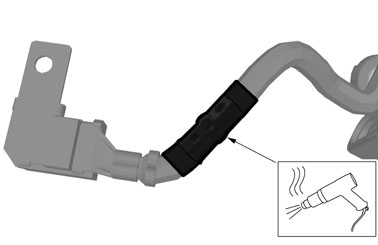

Thread the heat-shrinkable tubing onto the electrical wiring before splicing the electrical wiring.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Torque: Battery lead to battery lead terminal, 21Nm

To install, reverse the removal procedure.
