Engine Compartment Adapter Cables [2016-2018]: Removal

Remove glove compartment, refer to: GLOVE COMPARTMENT

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

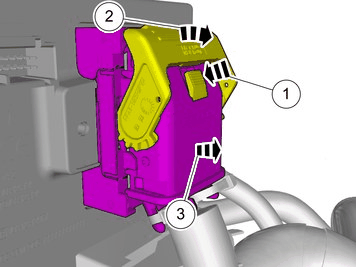

1. Remove the marked part.
2. Release the connector's catch.
3. Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

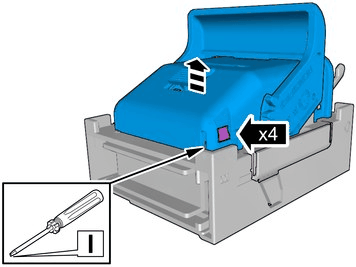

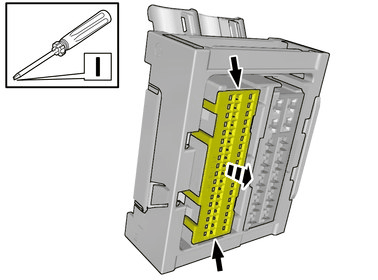

Release the catches.

Remove the marked part.

Use:  Electrician's screwdriver

Courtesy of VOLVO CARS CORPORATION

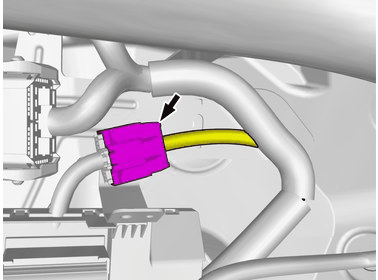

Release the connector's secondary lock.

Courtesy of VOLVO CARS CORPORATION

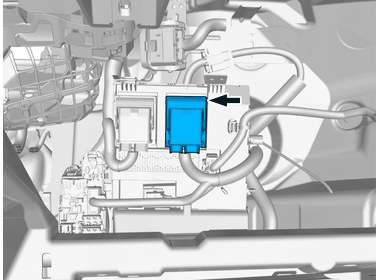

Disconnect the connector.
