Engine Compartment Adapter Cables [2016-2018]: Installation

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position.

Courtesy of VOLVO CARS CORPORATION

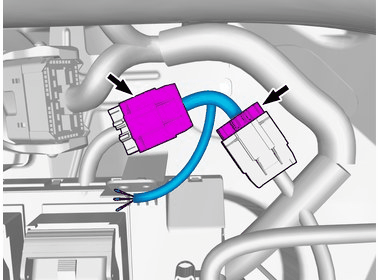

Connect the prerouted cable.

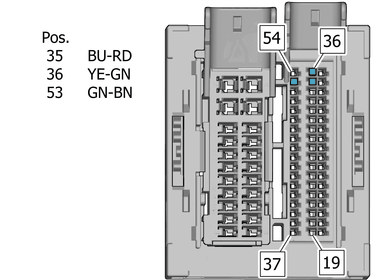

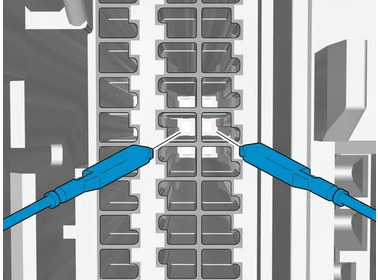

Connect the cable harness terminals in the connector as follows.

Courtesy of VOLVO CARS CORPORATION

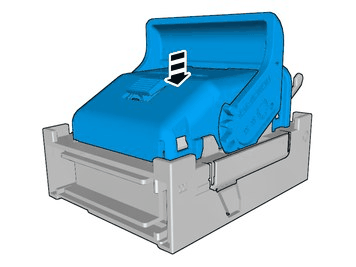

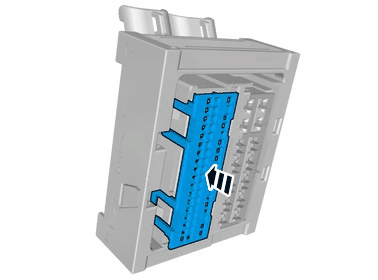

Depress the secondary lock.

Courtesy of VOLVO CARS CORPORATION

Reinstall the removed part.

To install, reverse the removal procedure.
