Central Electrical Unit Engine Compartment [2016-2018]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove battery, refer to: BATTERY

Remove the air filter housing, refer to: AIR CLEANER HOUSING

GLL153581

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

NOTE:

Note the position of the component before removal.

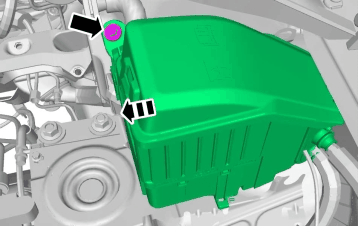

GLL154812

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

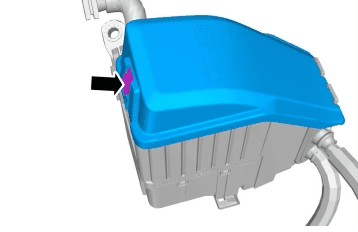

GLL154814

Courtesy of VOLVO CARS CORPORATION

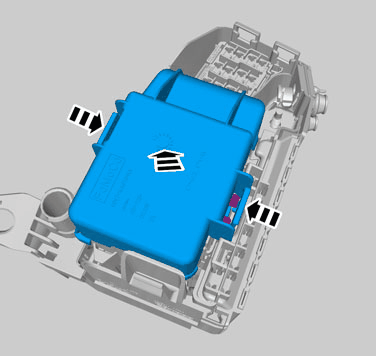

GLL172917

Courtesy of VOLVO CARS CORPORATION

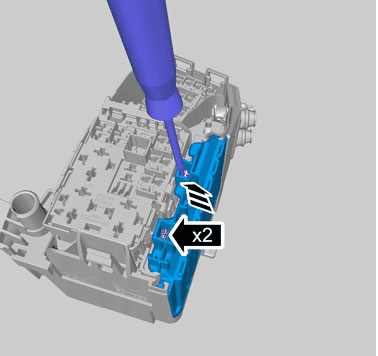

GLL172918

Courtesy of VOLVO CARS CORPORATION

Use: Electrician's screwdriver

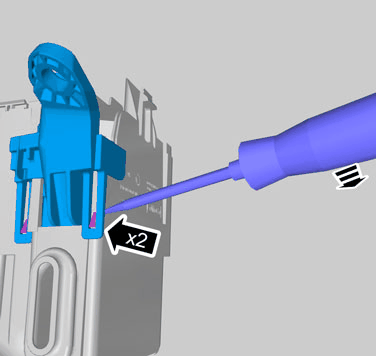

GLL172919

Courtesy of VOLVO CARS CORPORATION

GLL172920

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that no part of the wiring harness is trapped.

NOTE:

Make sure that the seal is correctly located.

Torque: M6, 10Nm

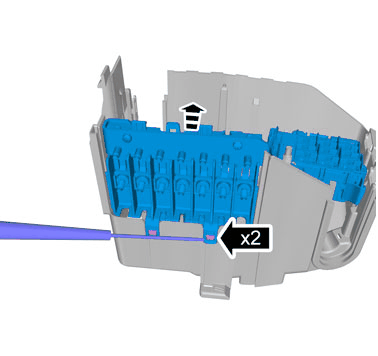

GLL172921

Courtesy of VOLVO CARS CORPORATION

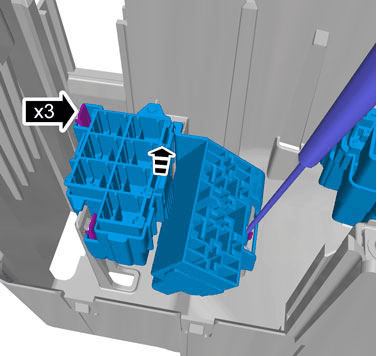

GLL172922

Courtesy of VOLVO CARS CORPORATION

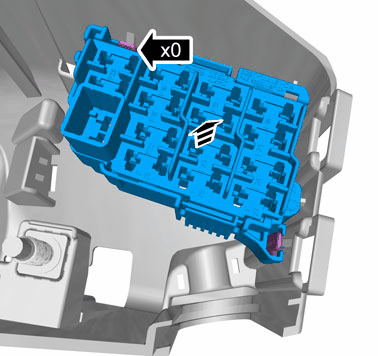

GLL172923

Courtesy of VOLVO CARS CORPORATION
