Battery Fuse [2016-2018]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Battery, disconnection, refer to: BATTERY DISCONNECTING AND CONNECTING

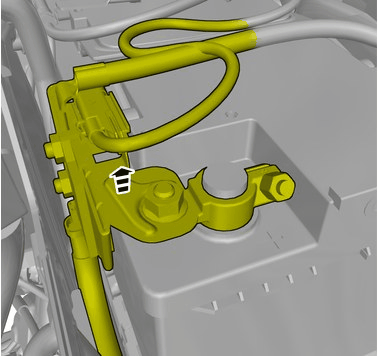

Loosen the nut.
Torque: Battery cable for battery, 6Nm
Loosen the marked detail/details.
Remove the nuts.
Torque: Fuse, to Battery terminal, 18Nm

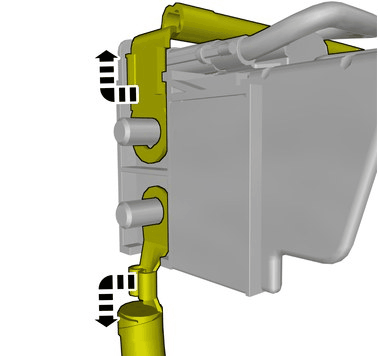

Loosen the wiring harness or move it to the side.
Disconnect the connector.
Remove the marked part.
