Female Connector Terminals, Check [2016-2018]
NOTE:
For information on Volvo color coded illustrations, refer to: IMAGES
SPECIAL TOOLS

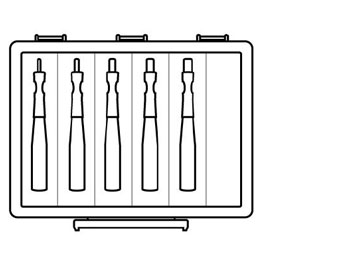

| 951 3036 Test probe Tool number: 951 3036 Tool description: Test probe Tool boards: EU99 |
CHECK

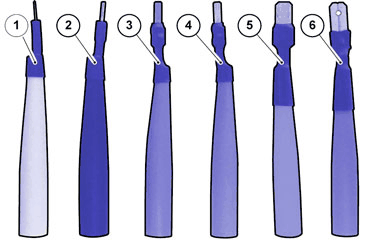

- Grey 0.64 - 0.8 mm
- Black 1.6 mm
- Blue 2.8 mm
- Green 2.8 mm
- Orange 5.8 mm
- Red 6.3 mm
CAUTION:
Never force the tool into place.
CAUTION:
When in doubt, always start with a tool of small size.

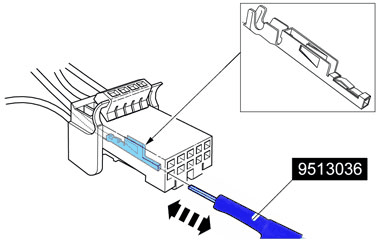

A certain amount of resistance is normal when inserting and pulling out the tool.

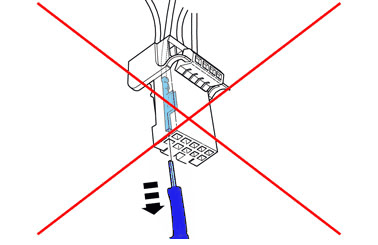

If no resistance is felt or if the tool falls out of the connector when the connector is held vertically, the terminal is defective.
