Power Socket 12V [2016-2018]: Removal

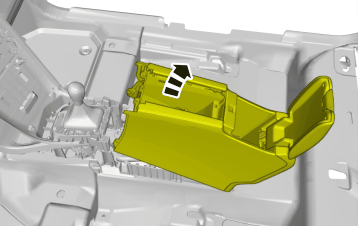

Remove center console, refer to: CENTER CONSOLE
VEHICLES WITH REAR PASSENGER ENTERTAINMENT SYSTEM (RSE)
 Courtesy of VOLVO CARS CORPORATION
|

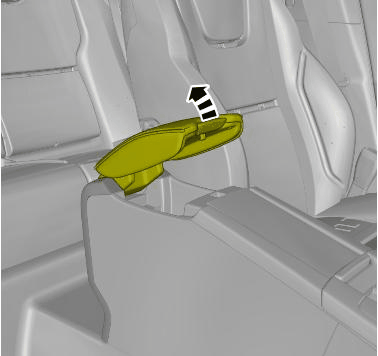

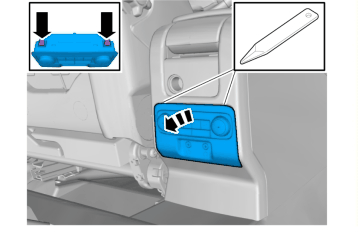

Remove the part carefully
 Courtesy of VOLVO CARS CORPORATION
|

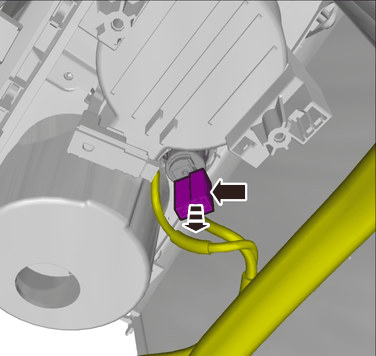

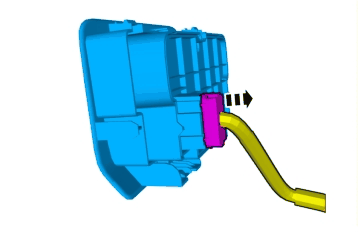

Disconnect the connector.

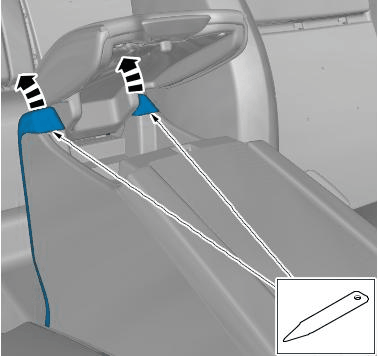

ALL VEHICLES

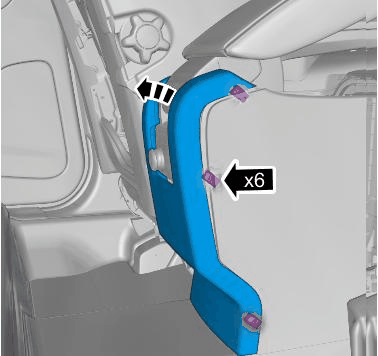

 Courtesy of VOLVO CARS CORPORATION
|

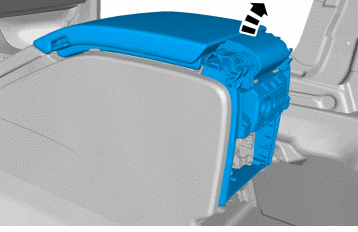

 Courtesy of VOLVO CARS CORPORATION
|

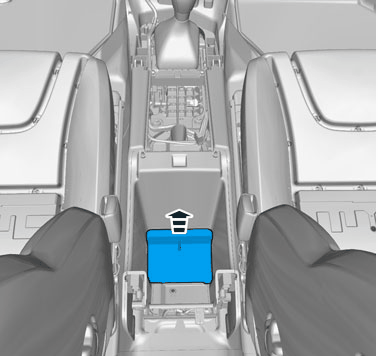

 Courtesy of VOLVO CARS CORPORATION
|
 Courtesy of VOLVO CARS CORPORATION
|

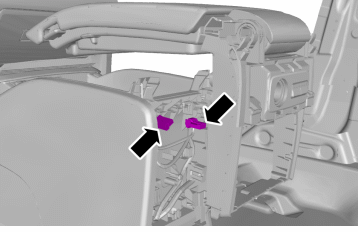

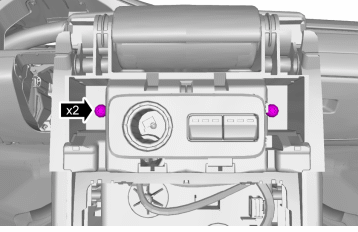

Loosen the screws.
 Courtesy of VOLVO CARS CORPORATION
|

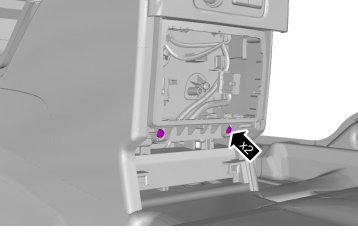

Loosen the screws.
 Courtesy of VOLVO CARS CORPORATION
|
 Courtesy of VOLVO CARS CORPORATION
|

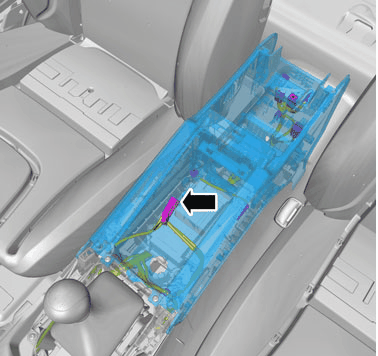

Disconnect the connectors.
 Courtesy of VOLVO CARS CORPORATION
|
 Courtesy of VOLVO CARS CORPORATION
|

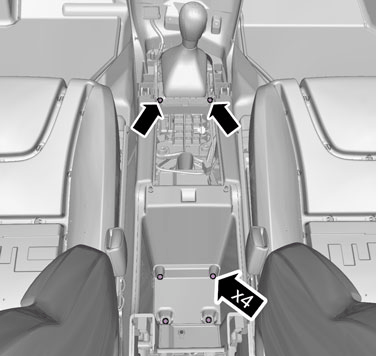

Loosen the screws.
 Courtesy of VOLVO CARS CORPORATION
|
CAUTION:
The number of connectors, cables and cable ties may vary depending on the vehicle specification.
Disconnect the connectors.
 Courtesy of VOLVO CARS CORPORATION
|
 Courtesy of VOLVO CARS CORPORATION
|

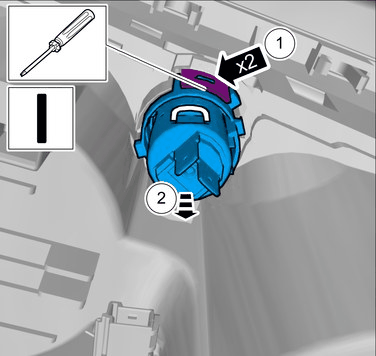

Disconnect the connector.
 Courtesy of VOLVO CARS CORPORATION
|
