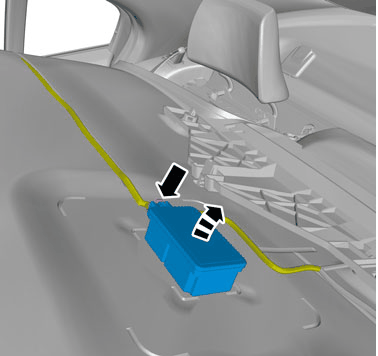

Locking System Receiver [2016-2018]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the following items:
- B-pillar trim panel, refer to: B-PILLAR TRIM PANEL
- C-pillar trim panel, refer to: C-PILLAR TRIM PANEL
On both sides.
Torque: M6, 10Nm
On both sides.
Torque: M6, 10Nm
CAUTION:
Take extra care not to crease the headliner.
