Heated Steering Wheel Module (HSWM) [2016-2018]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

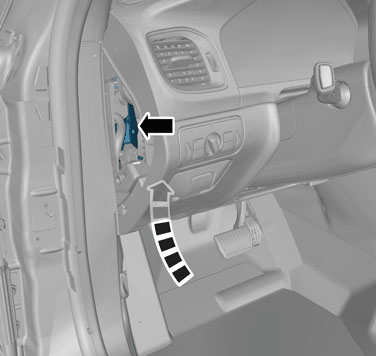

GLL1034284Courtesy of VOLVO CARS CORPORATION
NOTE:

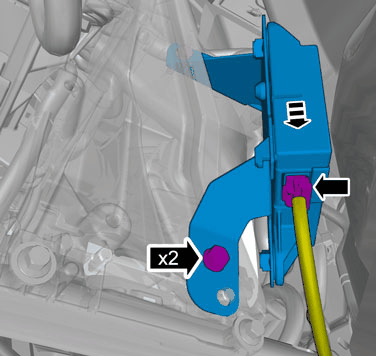

Orientation view

GLL1016737Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm
