Headlamp Washer Jet [2017-2018]: Removal

Remove casing bumper front, refer to: COVER BUMPER FRONT

Courtesy of VOLVO CARS CORPORATION

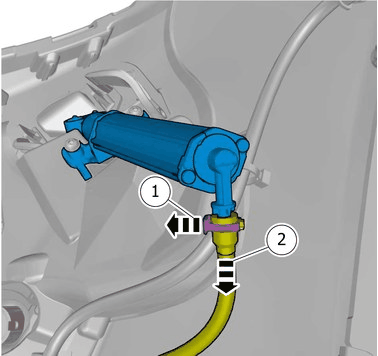

Release the lock.

Undo the hose from the connection.

Courtesy of VOLVO CARS CORPORATION

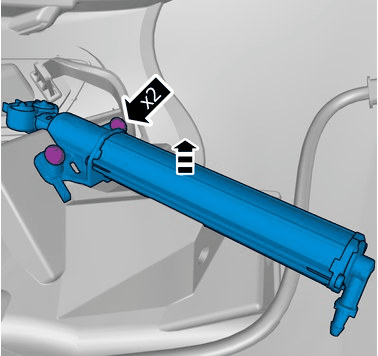

Loosen the screws.

Remove the marked part.
