Headlamp Washer Jet [2016]: Removal

Remove casing bumper front, refer to: COVER BUMPER FRONT

GLL1026970Courtesy of VOLVO CARS CORPORATION
CAUTION:

Be extra careful when removing or installing this component.

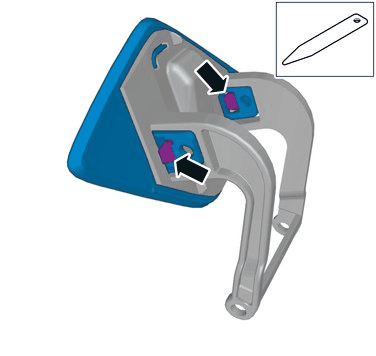

GLL1030903Courtesy of VOLVO CARS CORPORATION

Release the catches.

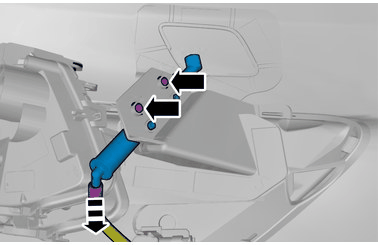

GLL1031107Courtesy of VOLVO CARS CORPORATION

Undo the hose from the connection.

Loosen the screws.
