Camera Collision Warning [2016-2018]: Installation

Courtesy of VOLVO CARS CORPORATION

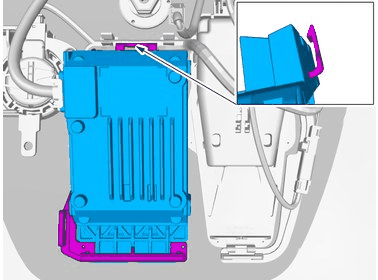

Check that the component has locked in its position.

Courtesy of VOLVO CARS CORPORATION

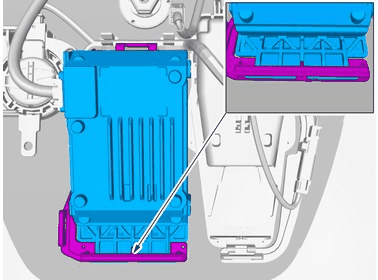

NOTE:

A click confirms that the component is in the correct position.

Check that the component has locked in its position.

To install, reverse the removal procedure.

NOTE:

The following steps are only necessary when installing a new component.

Order and download the appropriate Volvo software according to (VIDA/SOFTWARE).

Calibrate camera according to: DIAGNOSTICS/CAR COMMUNICATION/Advanced/FSM/Calibrating radar and camera
