Camera (BLIS) [2018]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove rear-view mirror external, refer to: EXTERNAL MIRROR

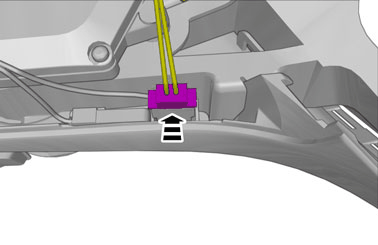

Courtesy of VOLVO CARS CORPORATION

Remove the part carefully

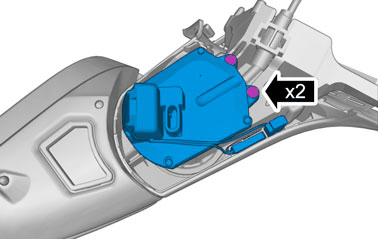

Courtesy of VOLVO CARS CORPORATION

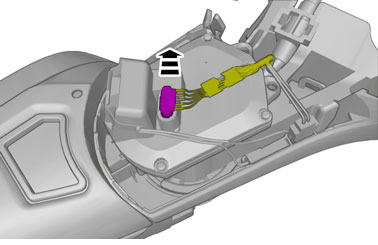

Courtesy of VOLVO CARS CORPORATION

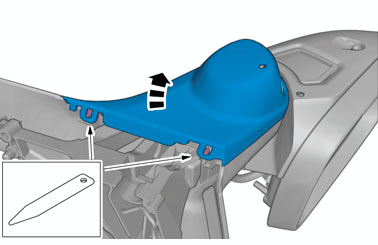

Courtesy of VOLVO CARS CORPORATION

Torque: Camera (BLIS) to External Rear View Mirror, 4Nm
