Battery [2017-2018, B4204T11 | 2016, B5254T12]: Removal

See the battery and charging safety information, refer to: SAFETY INFORMATION BATTERY AND CHARGING

Courtesy of VOLVO CARS CORPORATION

VEHICLES WITH R-DESIGN

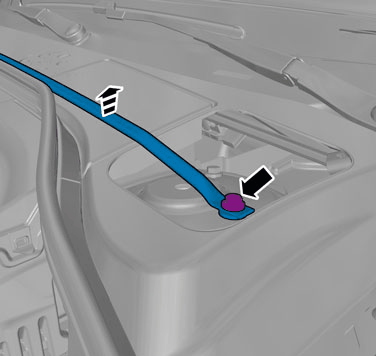

Courtesy of VOLVO CARS CORPORATION

On both sides.

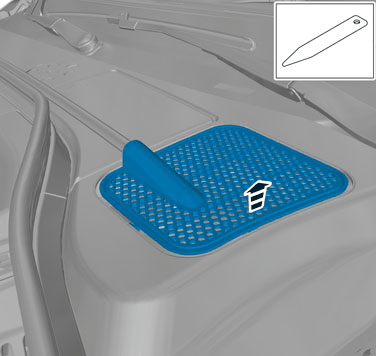

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque:  Strut and spring assembly to strut and spring assembly turret, 30Nm

On both sides.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

Courtesy of VOLVO CARS CORPORATION

Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

Loosen the nuts.

Torque:  Battery cable for battery, 6Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque:  M6, 10Nm
