Front Driveshaft Left [2017-2018, B4204T11, TG-81SC AWD | 2016, B5254T12, TF-80SC AWD]: Removal

WARNING:

Do not use magnets or magnetic tools close to tooth wheels, drive shafts or wheel hubs. A magnetized tooth wheel will lose its function and generate incorrect signals resulting in fault codes.

NOTE:

Any magnetized tooth wheel, drive shaft or wheel hub must be replaced with a new component.

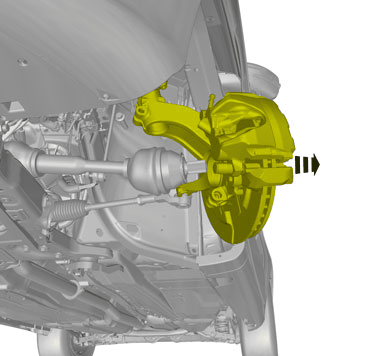

Loosen wheel spindle, refer to: FRONT CONTROL ARM

Courtesy of VOLVO CARS CORPORATION

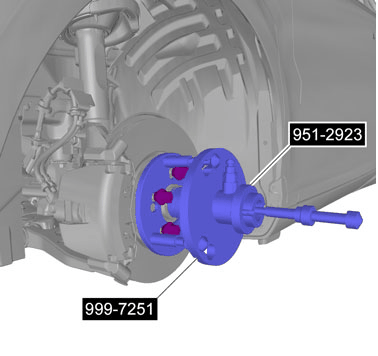

Special Tool: 951 2923 and Special Tool: 999 7251

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

CAUTION:

Take extra care not to damage the seal.

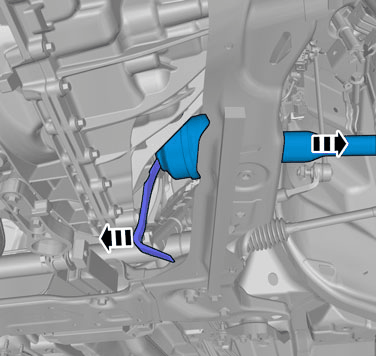

Use: Pry bar

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to damage the seal.
