Front Drive Shaft Right [2017-2018, B4204T11, TG-81SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

WARNING:

Do not use magnets or magnetic tools close to tooth wheels, drive shafts or wheel hubs. A magnetized tooth wheel will lose its function and generate incorrect signals resulting in fault codes.

NOTE:

Any magnetized tooth wheel, drive shaft or wheel hub must be replaced with a new component.

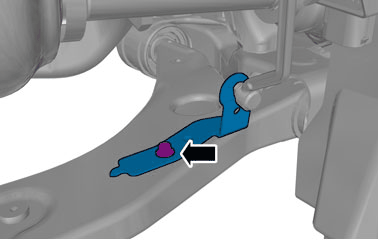

GLL1036003

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: M6, 10Nm

Loosen wheel spindle, refer to: FRONT CONTROL ARM

GLL1011656

Courtesy of VOLVO CARS CORPORATION

Special Tool: 951 2923 and Special Tool: 999 7251

Install the screws.

GLL1010422

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the clips.

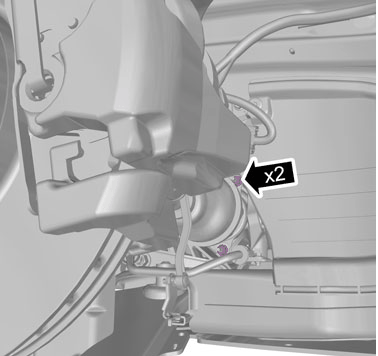

GLL1017548

Courtesy of VOLVO CARS CORPORATION

Remove the nuts.

Torque: Drive Shaft Bearing, to bracket, 30Nm

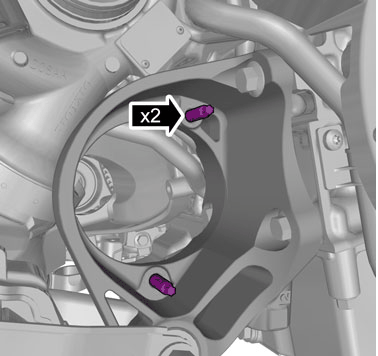

GLL1032034

Courtesy of VOLVO CARS CORPORATION

NOTE:

The following step is only necessary if a stud is loosened when the nut is removed.

Torque: Stud, to drive shaft bracket, 9Nm

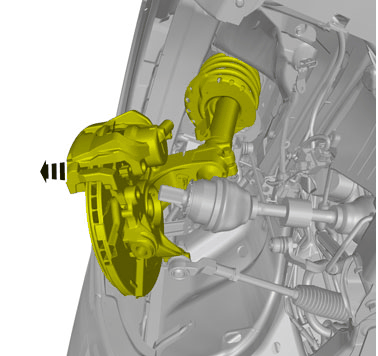

GLL1039108

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

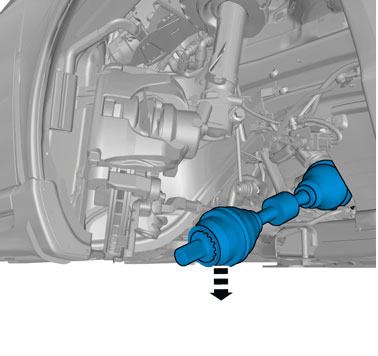

GLL1041225

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

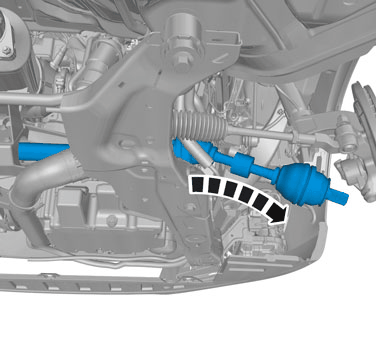

GLL1030676

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

CAUTION:

Take extra care not to damage the seal.

Remove the marked part.
