Front Drive Shaft Right [2016, B5254T12, TF-80SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

WARNING:

Do not use magnets or magnetic tools close to tooth wheels, drive shafts or wheel hubs. A magnetized tooth wheel will lose its function and generate incorrect signals resulting in fault codes.

NOTE:

Any magnetized tooth wheel, drive shaft or wheel hub must be replaced with a new component.

Remove the following items:

the wheel, refer to: WHEELS
Engine Rear Lower Support Insulator RH, refer to: ENGINE REAR LOWER SUPPORT INSULATOR RH

Courtesy of VOLVO CARS CORPORATION

Torque:Driveshaft to wheel hub (front),

Stage 1: 35Nm
Stage 2: 90°

Loosen wheel spindle, refer to: FRONT CONTROL ARM

Courtesy of VOLVO CARS CORPORATION

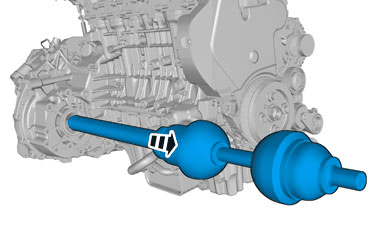

Special Tool: 951 2923 and Special Tool: 999 7251

Courtesy of VOLVO CARS CORPORATION

NOTE:

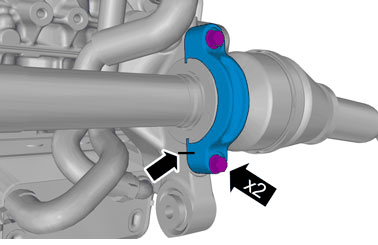

Note the position of the component before removal.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the inner constant velocity (CV) joint does not separate.
