Final Drive [2017-2018, B4204T11, TG-81SC AWD | 2016, B5254T12, TF-80SC AWD]: Removal

Perform rear end, service position, refer to: REAR SUSPENSION, SERVICE POSITION

Courtesy of VOLVO CARS CORPORATION

Torque:  Rear Upper Control Arm to Longitudinal Stay, 130Nm

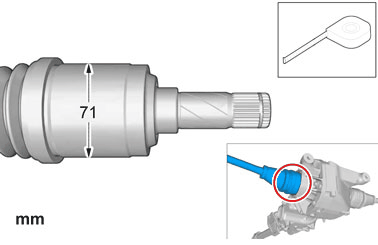

VEHICLES EARLY VERSION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 7399

VEHICLES LATE VERSION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 7397   and Special Tool: 999 7398

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

Torque:  Rear Upper Control Arm to Longitudinal Stay, 130Nm

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 7160

Courtesy of VOLVO CARS CORPORATION

Torque:  M12, 80Nm
