Drive Flange Final Drive [2017-2018, B4204T11, TG-81SC AWD | 2016, B5254T12, TF-80SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Loosen rear propeller shaft joint, refer to: PROPELLER SHAFT

Courtesy of VOLVO CARS CORPORATION

VEHICLES EARLY VERSION

Courtesy of VOLVO CARS CORPORATION

VEHICLES LATE VERSION

Courtesy of VOLVO CARS CORPORATION

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

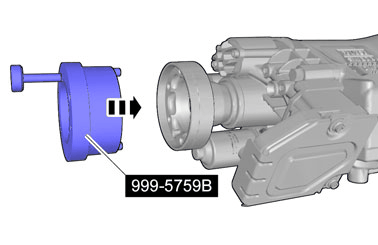

Torque: Pinion nut for clutch AOC, 150Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Note the position of the component before removal.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.
