Differential Rear Bushing [2016, TF-80SC AWD | 2017-2018, TG-81SC AWD]: Removal

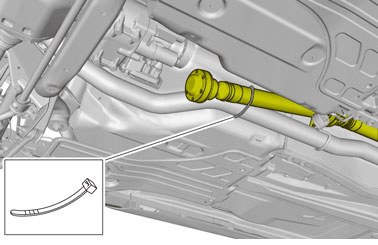

Remove rear propeller shaft universal joint, refer to: PROPELLER SHAFT

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Torque:  M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Torque:  M12, 80Nm

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 7034  , Special Tool: 999 7132 , Special Tool: 951 2923  , Special Tool: 999 7054  , Special Tool: 999 7096  , Special Tool: 999 7095  and Special Tool: 999 7331

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 7330
