Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Remove the propeller shaft, refer to: PROPELLER SHAFT

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

NOTE:

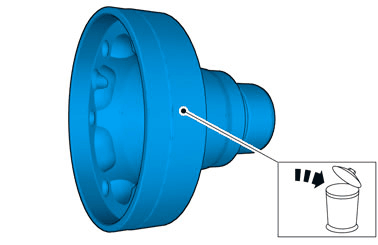

Transfer marked part to the new component. If this is not possible, install new part.

Remove the final drive flange, refer to: DRIVE FLANGE FINAL DRIVE

Courtesy of VOLVO CARS CORPORATION

INSTALLATION

Courtesy of VOLVO CARS CORPORATION

WARNING:

Wear safety goggles, protective gloves and ear protectors.

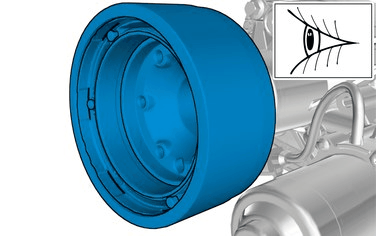

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Use lint free cloth.

Courtesy of VOLVO CARS CORPORATION

Use: Transmission oil, 30759648

To install, reverse the removal procedure.

Perform Active On Demand Coupling fluid level, check, refer to: ACTIVE ON DEMAND COUPLING FLUID LEVEL CHECK

Order and download the appropriate Volvo software according to: (VIDA/Software/Hardware Changes)

Calibrate according to: DIAGNOSTICS/VEHICLE COMMUNICATION/Advanced/DEM/Calibrating
