Boot, Driveshaft Constant Velocity Joint, Outer [2016-2018]: Removal

Remove the following items:

• Driveshaft left, refer to: DRIVESHAFT LEFT
• Drive shaft right, refer to: DRIVE SHAFT RIGHT

Courtesy of VOLVO CARS CORPORATION

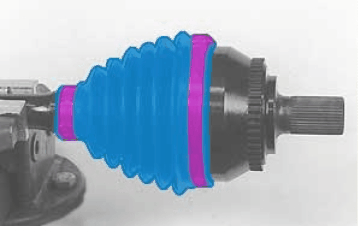

Remove the cable tie(s).

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

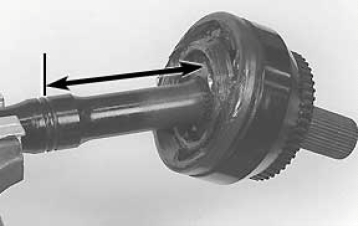

Measure

Courtesy of VOLVO CARS CORPORATION

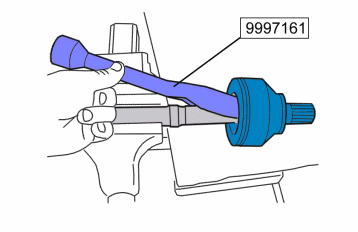

Special Tool: 999 7161

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION
