Boot CV Joint Housing, Inner [2016-2017 | 2018, TG-81SC AWD]: Installation

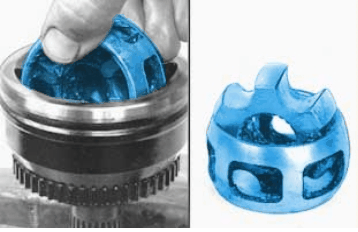

Courtesy of VOLVO CARS CORPORATION

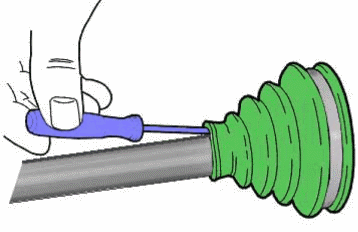

Courtesy of VOLVO CARS CORPORATION

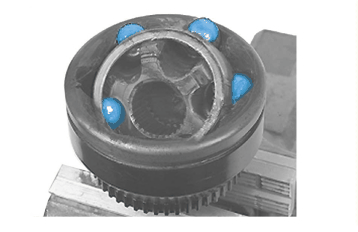

Courtesy of VOLVO CARS CORPORATION

1. Torque:  CV-joint boot clamp, large, 24Nm
2. Torque:  CV-joint boot clamp, small, 17Nm

Courtesy of VOLVO CARS CORPORATION

Install the following items:

• Drive shaft right, refer to: DRIVE SHAFT RIGHT
• Driveshaft left, refer to: DRIVESHAFT LEFT

Courtesy of VOLVO CARS CORPORATION

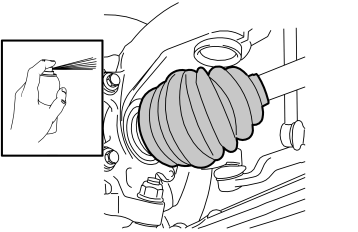

Use:  Wax, 30787812
