Propeller Shaft [2017-2018, B4204T11, TG-81SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

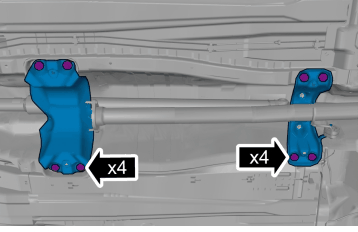

Remove the screws.

Remove the clips.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use a new seal.

Torque: M8, 24Nm

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.

Torque:Prop shaft, CV joint,

Stage 1: 10Nm
Stage 2: 25Nm°

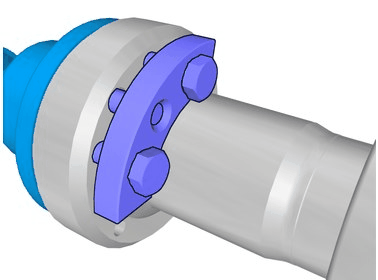

Remove the screws.

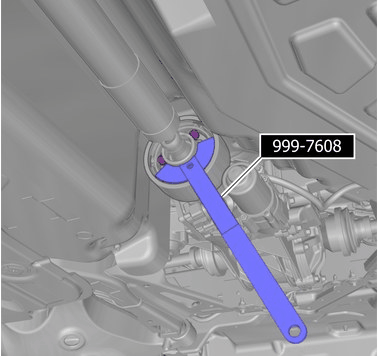

Special Tool: 999 7608

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.

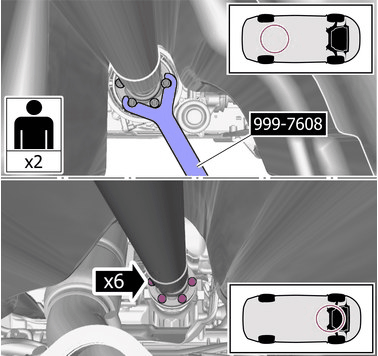

Remove the screws.

Special Tool: 999 7608

Torque:Prop shaft, CV joint,

Stage 1: 10Nm
Stage 2: 25Nm

Courtesy of VOLVO CARS CORPORATION

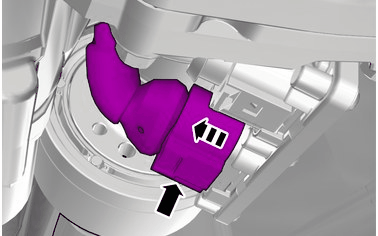

Disconnect the connector.

ALTERNATIVE 1

Courtesy of VOLVO CARS CORPORATION

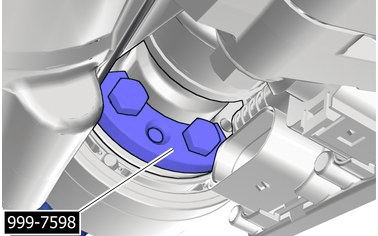

Tighten the bolts.

Special Tool: 999 7598

ALTERNATIVE 2

Courtesy of VOLVO CARS CORPORATION

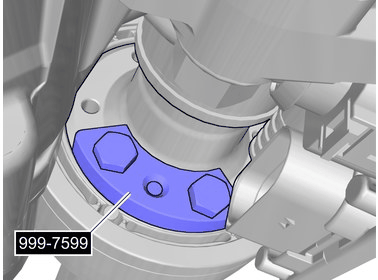

Special Tool: 999 7599

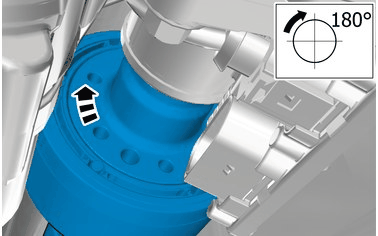

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

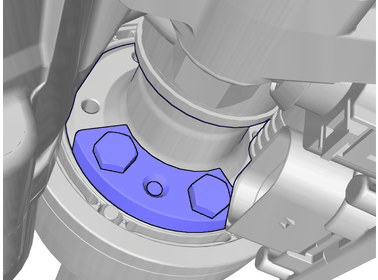

Tighten the bolts.

Special Tool: 999 7598 and Special Tool: 999 7599

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M6, 10Nm

Lift the marked component up

Courtesy of VOLVO CARS CORPORATION

Tighten the bolts.

Special Tool: 999 7598 and Special Tool: 999 7599

Courtesy of VOLVO CARS CORPORATION

Tighten the bolts.

Special Tool: 999 7598 and Special Tool: 999 7599

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.

Courtesy of VOLVO CARS CORPORATION

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Torque: Prop shaft, center bearing, 30Nm

Courtesy of VOLVO CARS CORPORATION

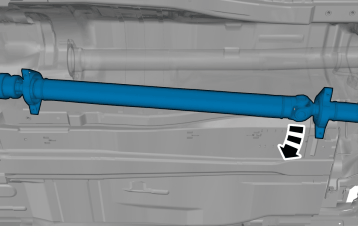

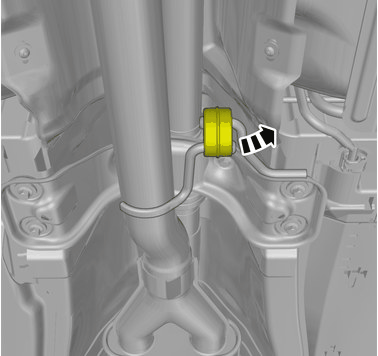

Remove the marked part.
