General Information

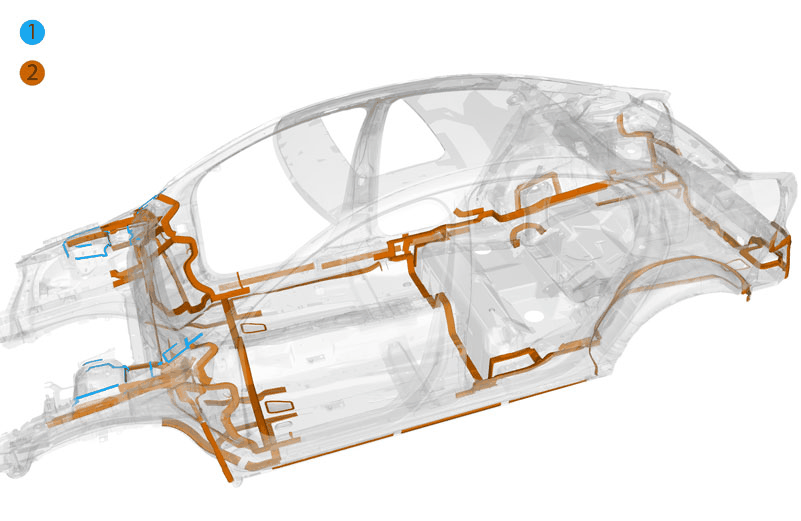

GLL173517Courtesy of VOLVO CARS CORPORATION
  1. Use:  Sealing compound, 1161767
  2. Use:  Sprayable body sealant, 1161651

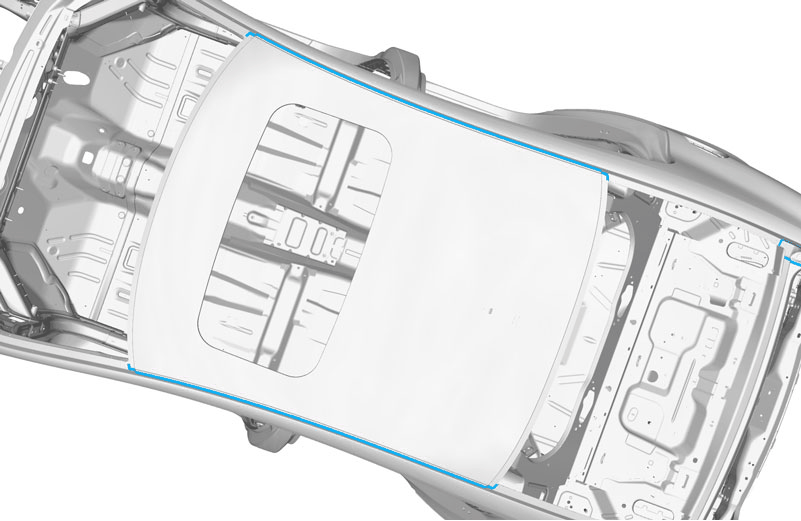

GLL173518Courtesy of VOLVO CARS CORPORATION

Use:  Seal, 3M 07333

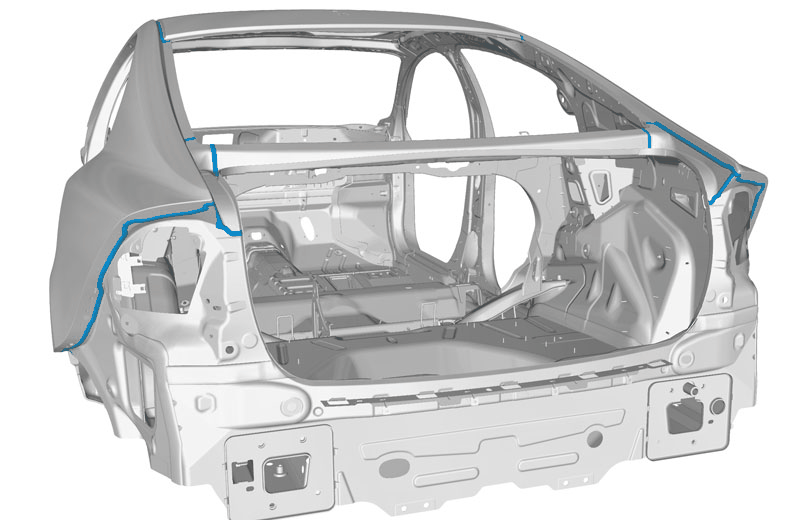

GLL173519Courtesy of VOLVO CARS CORPORATION

Use:  Sealing compound, 1161767

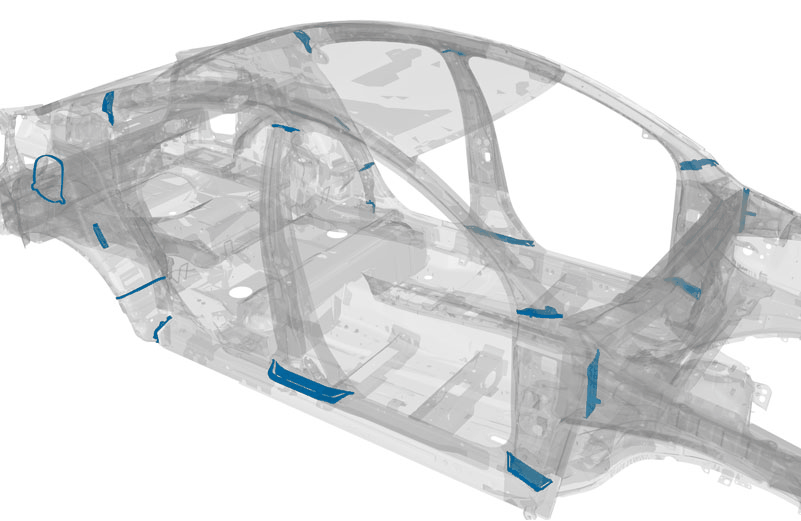

GLL173520Courtesy of VOLVO CARS CORPORATION

Use:  Seal, 6817640
